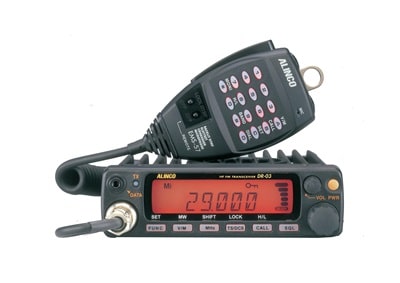

Alinco DR-03T 10 Meter FM Mobile Transceiver
Specifications
-
Brand:AlincoManufacturer’s Part Number:DR-03TPart Type:Mobile TransceiversProduct Line:Alinco DR-03T 10 Meter FM Mobile TransceiversUPC:4969182340730FCC License Required to Transmit:YesReceive Range 1:28.000-29.695 MHzDetachable Faceplate:NoCross-Band Repeat:NoAM Broadcast Band Coverage:NoFM Broadcast Band:NoAircraft Band:NoWeather Band:NoTransceiver Power Supply:External, not includedTransceiver Input Voltage:12-15 VdcTransceiver Maximum Current:3.0 AAntenna Ports:1Radio Width:5.590 in.Radio Height:1.570 in.Radio Depth:6.850 in.Weight:2.200 lbs.Quantity:Sold individually.Band Coverage:10 metersBand Agility:MonobandTransmit Frequency Range:28.000-29.695 MHzFM Maximum Power:10 WFM Minimum Power:2 W
Alinco DR-03T 10 Meter FM Mobile Transceivers
Alinco DR-03T 10 meter FM mobile transceivers are capable, reliable, easy-to-use, compact 10 meter transceivers. With Alinco DR-03Ts, you will discover exciting 10 meter FM communications!
Working DX is possible over thousands of kilometers by taking advantage of unique Solar Cycle propagation. Of course, even without favorable propagation conditions, ground wave simplex and local 10 meter repeaters will keep you communicating with friends.
General features of DR-03T transceivers:
* Wide and narrow FM modes
* Super-wide 7 character alphanumeric display
* 100 memory channels
* CTCSS, DCS encode and decode, DTMF encode and Tone-burst are all standard
* Ten autodial memories
* Clean, clear, quality audio
* Theft alarm feature
* Includes a large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory/VFO, plus more
* Stays in mode you select (voice/packet) even through power/off cycles
* Compliant to RoHS as a lead-free productTransceiver specifications:
* Frequency range TX and RX: 28 to 29.695 MHz
* Channel steps 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 kHz
* Memory: 100 channels plus 1 quick recall (CALL)
* CTCSS tone encoder/decoder 39 tones
* Digital coded squelch encoder/decoder 104 codes
* Antenna impedance: 50 ohms unbalanced (SO-239)
* Frequency stability: Plus/minus 7 ppm
* Power requirement: 13.8 V nominal, 11.7 to 15.8 V
* Supply polarity: Negative ground
* Current drain: TX High 3.0 amps, RX: 0.6 amps maximum
* Usable temperature range: 14 to 140 degrees F
* Dimensions (w/o projections) 5.59 in. (W) x 1.57 in. (H) x 6.85 in. (D)
* Weight: 35.3 oz.Transmitter details:
* 10 watts, selectable medium 5W, and low 2W, power settings
* Modulation system: Variable-reactance frequency modulation
* Spurious emission: Less than -40 dB
* Maximum frequency deviation: Plus/minus 5 kHz (FM), Plus/minus 2.5 kHz (Narrow FM)Receiver details:
* Receive system: Double-conversion Superheterodyne
* Sensitivity: -12dB SINAD, less than -12.0 dBu
* Intermediate frequency 1st IF 10.7 MHz, 2nd IF 450 kHz
* Selectivity: FM -6dB: plus/minus 12 kHz or more, -60dB: plus/minus 28 kHz or less; NFM -6dB: plus/minus 6 kHz or more, -60dB: plus/minus 16 kHz or less
* Audio output power: More than 2 watts (at 8 ohms, 10 percent THD)Included accessories:
* Instruction manual
* EMS-57 DTMF microphone
* Mounting bracket with screw kit
* DC power cable
* Mobile microphone holder
* Alarm cableOperating 10 meter FM mobile can be a great way to enhance your travel. Whether it’s FM DX, ground wave or local repeaters, one of these Alinco DR-03T 10 meter FM mobile transceivers
