Description

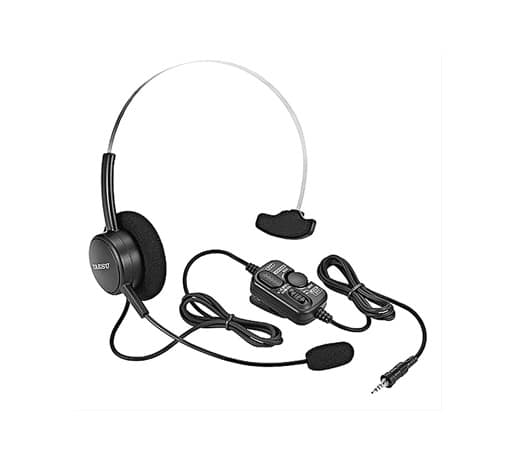

YAESU SSM-64A HT HEADSETS
- Brand:
- Yaesu
- Manufacturer’s Part Number:
- SSM-64A
- Part Type:
- Handheld Accessories
- Product Line:
- Yaesu SSM-64A HT Headsets
- UPC:
- 788026144259
- Handheld Accessory Type:
- Headset
- Quantity:
- Sold individually.
- Fits Radio Manufacturer:
- Yaesu
Additional Information
| Fits Transceiver Model |
|---|
| VX-170 |
| VX-177 |
| VX-270R |
| VX-277R |
| VX-6R |
| VX-7R |

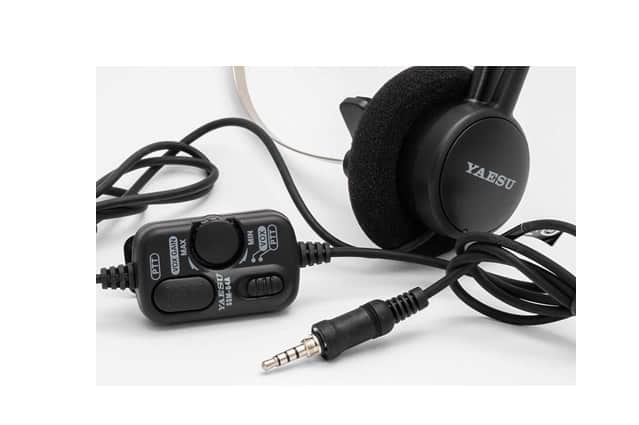

Yaesu SSM-64A HT Headsets
Yaesu SSM-64A Headsets are straight single-pin VOX headsets that replace the discontinued Yaesu VC-24. These lightweight and convenient headsets work with Yaesu’s VX-170, FT-270R, FT-277R, VX-177, VX-6R and VX-7R transceivers.
These headsets are easily switched from conventional PTT push-to-talk mode to VOX operation. VOX sensitivity is electronically adjustable between2 mV RMS and 10 mV RMS to allow for convenient microphone placement. Their threaded single-pin connector plugs in to the transceiver’s MIC/SP jack and holds the cable securely in place.
Specifications:
* Supply Voltage: 2.0 to 10V DC (radio supplied)
* Current Consumption: 1.5 mA MAX
* Maximum Audio Output Level: 30 mW
* Impedance: 32 ohms
* Headset cable Length: 63 in. (1.6 m)
