Description

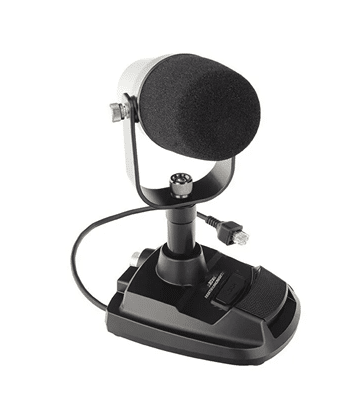

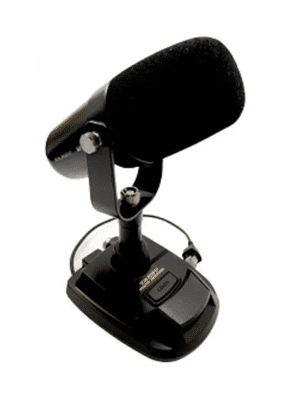

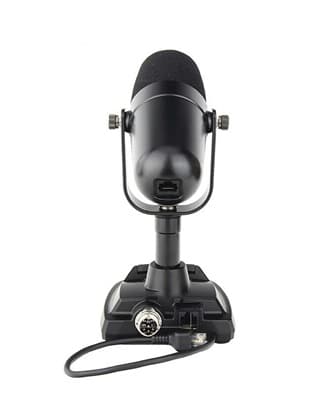

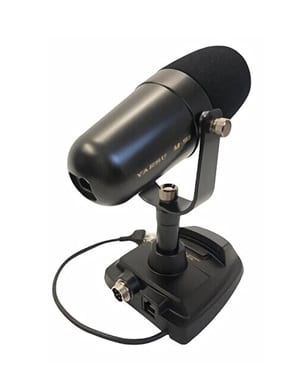

Yaesu M-90D Desktop Microphone
-
The M-90D utilizes a dynamic microphone element that is finely tuned to deliver rich low to mid
frequency response desirable for a clear and concise conversation.Using a windscreen cover and a directional microphone element, the structure of the microphone of the M-90D is designed to concentrate voice input from the front while reducing ambient noise from the side.
Built-in Low-Cut filter creates clear and crisp audio characteristics by shaping the low frequency response (cut off at340Hz, -6dB/octave).
An isolation transformer is integrated in the circuit board in order to enhance the audio quality.
The M-90D and M-90MS* are compatible with all YAESU HF transceivers equipped with the round 8-pin microphone connector or the 8-pin modular microphone connector.
M-90D Desktop Microphone
The PTT of the M-90D uses three Air-Cylinder tubes similar to the Reference Microphone M-1.
This provides solid and smooth extended operation. A simple one touch PTT keylock button is placed directly above the PTT key for those long rag chews
*M-90D does not require the SCU-53 to connect to the transceiver equipped with the round 8-pin microphone
connector.Specifications: __
Microphone Type: Dynamic microphone
Supply Voltage: DC5.0 V ±10 %
Frequency Response: 30 – 17000Hz
Sensitivity: – 60 dB (1kHz 0 dB=1V/1Pa)
Microphone Impedance: 600 Ohms
Dimensions (W x H x D): M-90D: 4.17″ x 7.56″ x 4.98″ (W106 x H192 x D126.5 mm)
* H: Maximum when microphone head position is flat.
M-90MS Kit: Diameter: 2.45″ (62 mm), Length: 6.38″ (162 mm)
* Microphone head size only.
Weight: M-90D: 18.70oz (530 g) w/o cable
M-90MS Kit: 7.05oz (200 g) w/ Bracket, w/o Handheld PTT controllerCompatible Transceivers:
FTDX101 series*2 FTDX10
FTDX9000 series*2 FTDX5000 series*2
FTDX3000D*2 FTDX1200*2
FT-991/A FT-891
FT-450/D FT-857/D, FT-818ND, FT-817/ND
FT-2000/D*2 FT-1000MP*2, FT-1000MP MARK-V*2
FT-950*2, FT-920*2, FT-900, FT-990*1*2 FT-897/D, FT-847*2
FT-1000*1*2 FT-850*1*2 FT-840*1*2 FT-747*1*2*1 Requires the optional Power Supply Kit (for M-90D and M-90MS Kit)
*2 Requires the optional cable SCU-53 (for M-90MS Kit)Order yours today from Elite Communications And Electronics
