Description

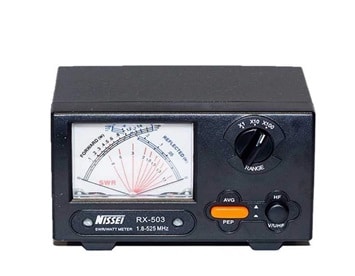

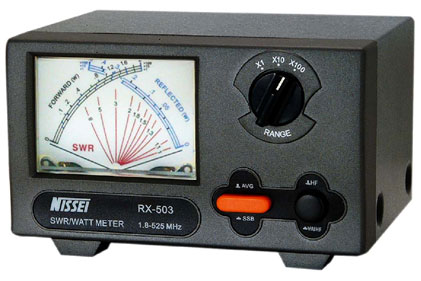

NISSEI RX-503 200W SWR & WATT METER 1.8 – 525 MHz
This SWR/Watt meter is a highly accurate RF meter for measuring Forward Power, Reversed Power, and VSWR by using cross-needle analog meter.
MAIN FEATURES：
Large meter display for ease of reading.
Forward RF power readings (switchable to indicate either average power or Peak Envelope Power [PEP], for SSB and AM transmitters).
Reversed RF power readings, VSWR rations, LED backlight illuminated meter, ease of operation
- Frequency Range – 1.8 – 525 MHz
- Measurable power range – 0 – 200W
- Power range – 15W, 60W, 200W
- Max. Power – 200W
- Accuracy (AVG) +/- 10%, (PEP) +/- 15%
- Accuracy (AVG) +/- 5%, (PEP) +/- 10%
- Min. Power (Fwd) measured – 1W
- Insertion loss – Less than 0.1 dB
- Testing functions – Fwd/Rev Power, PEP, SWR
- Impedance – 50 ohm
- Dimension – 140 x 84 x 122 mm
- Weight – 950 g
- Connector -Operation Manual, 13.8 DC Wire
