Description

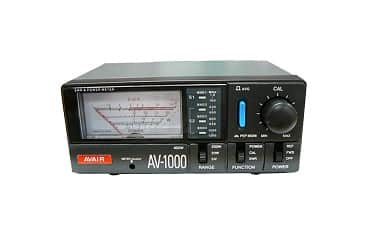

The AVAIR AV1000 power and SWR meter is suitable for testing of your vehicle or marine mounted antennas to check or tune the performance of your antenna once installed. The AV1000 is suitable for both VHF and UHF tuning with a range of power handling capabilities.
AV1000
Frequency range 1.8-160 MHz 140-525 MHz
Band 1: 1.8-160 MHz
Band 2: 430-450 MHz
Band 3: 800-930 MHz
Band 4: 1240-1300 MHz
5, 20, 200 & 400 Watt
Average or PEP
(430-1300MHz, 200 & 400W
only)
SPECIFICATIONS
FREQUENCY
1.4-160 MHz / 430-450 MHz / 800-930 MHz / 1240-1300 MHz – HF, VHF and UHF compatible
TUNING
No tuning required of SWR meter – attach to antenna or system and power source
IMPEDANCE
50 Ohms
MAXIMUM POWER
5 Watts / 20 Watts / 200 Watts or 400 Watts power handling
POLARISATION
Install on a flat horizontal surface, ensuring unit is not unbalanced.
CONSTRUCTION
Black plastic outer casing, plastic tune/reporting switches, high clarity analogue performance screen, aluminium rear panel with nickel plated terminations
CONNECTOR
2 x UHF Female SO-239 on rear, 2 x N-Type Female on rear
DIMENSIONS
150mm x 65mm x 100mm
WEIGHT – KG
0.922
