Description

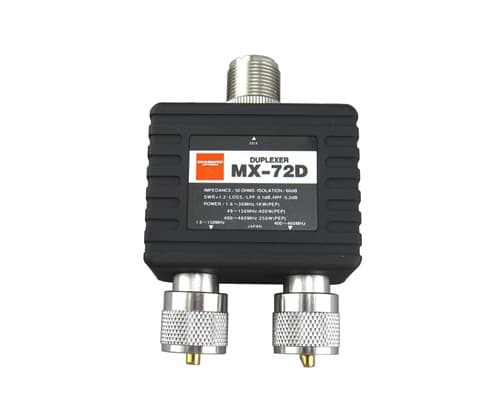

Diamond MX-72D Duplexer HF/144/430Mhz
-
- Dimensions: 46W x 27H x 57Dmm
- Weight: 180g
- Passband width: LPF 1.6 to 30MHz, 49 to 150MHz, HPF 400 to 460MHz (LPF:1.8 to 225MHz, HPF: 340 to 1000MHz receiving only)
- Power rating:1.6 to 30MHz: 400W (CW) 1kW (PEP), 49 to150MHz: 150W (CW) 400W(PEP), 400 to 460MHz: 100W (CW) 250W(PEP)
- Insertion loss: LPF Less than 0.1dB, HPF Less than 0.2dB
- Isolation: LPF:More than 60dB
- Impedance: 50ohms
- VSWR: Less than1.2:1
- Connector: (MIX)M-J/(144)M-P/(430)M-P
Diamond Antenna Duplexers
Diamond Antenna Duplexers are just what you need when splitting HF, VHF, or UHF signals. These duplexers may be used for combining two transceivers into one coax feed line. They are ideal for connecting HF/VHF radios, such ICOM IC-706 and IC-7000 series, and Yaesu FT-857 series, with two antenna ports, to a single feedline multi-band antenna, like the Diamond V7A. Diamond Antenna Duplexers eliminate the need to use an antenna switch and are made with a high-quality aluminum case with a black finish.
