Description

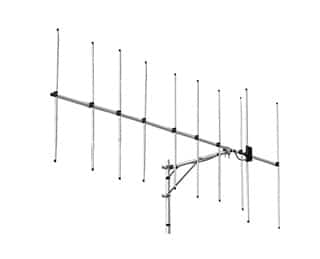

DIAMOND A144S10R 2 METRE 10 ELEMENT YAGI
This antenna has high gain for small size, easy to install and is factory adjusted – so no tuning required.
Specification
Frequency: 144-146MHz
Gain: 11.6dBi
Elements: 10
Power: 50W
Impedance: 50 Ohms
Socket: SO239
Front-to-back ratio: >15dB
VSWR: <1.3:1 typical
Boom length: 2.13m
Mast size: 25-47mm
Wind surface area: 0.16 m2
Turning radius: 1.45m
Dimensions: 2130 x 1090 x 73mm
Weight: 1.1kg
Package Dimensions: 1.7kg. L-116cm x W-11cm x H-10cm
Order yours from Elite Communications & Electronics today.
