Description

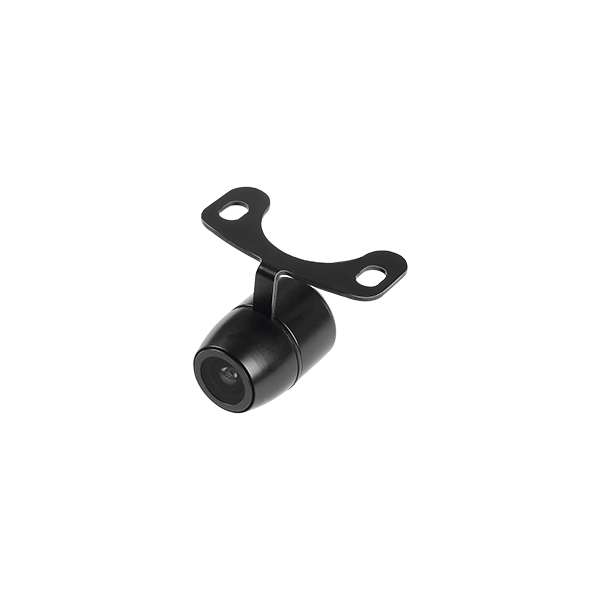

AXIS SD20 DUAL MOUNT REAR CAMERA
The SD20 is a versatile 12/24v input and IP67 weatherproof rear-view camera. It connects easily with RCA input LCD monitors and features dual mounting heads for license plate or surface mounting. It also has built-in selectable parking guidelines, making reversing safer and easier.
Features
- Image Device: 1/3” CMOS
- Diagonal Viewing Angle: 165°
- Horizontal Viewing Angle: 120°
- Signal System: PAL
- Effective Pixels: 640 x 480
- Resolution: 480 TV Lines
- Compatibility: All Monitors with RCA Input
- Lens: Full Glass
- Orientation: Selectable Mirror/Non Mirror
- Guidelines: Selectable On/Off
- Night Vision: 0.2 Lux
- Ingress Protection: IP67
- Integrated Microphone: No
- Operating Temp: -20 to 70°
- Power Consumption: 90-300mA
- Connection: Mini 4 Pin Terminated RCA (M)
- Lead: 6M
- Dimensions: 16.5W x 16.5H x 23D mm (Excluding Bracket)
- Power Supply: 9-32V DC
