Description

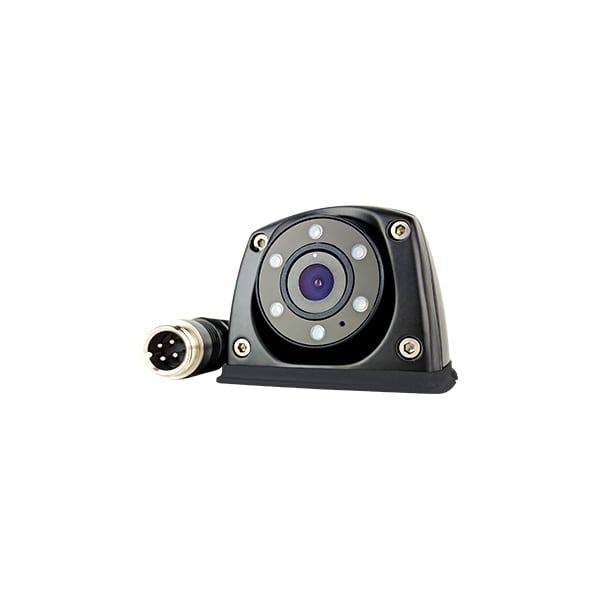

HEAVY DUTY MULTIFIT 1/3” CAMERA
– Image Sensor: 1/3” Colour CMOS
– Image Device: High Definition PC1089K
– Viewing Angle: 150° (Diagonal)
– Rotating Lens: 360° (Manually Adjustable)
– Angle Adjustment: Up/Down
– Effective Pixels: 728 x 488
– Resolution: 500 TV Lines
– TV System: PAL
– Image: Mirror
– Sensing Area: 4.6228mm x 3.6112mm
– Scanning System: 2:1 Interlace
– Sync. System: Internal
– Minimum Illumination: .01 Lux (Day) 0 Lux (with IR)
– Video Output: 1.0Vp-p, 75Ohm
– Signal to Noise Ratio: Better than 48dB
– White Balance: Auto
– Electronic Shutter: Auto, 1/50
– Operating Temperature: -20° to 60° C
– Connection: 4 Pin Connector
– Current Consumption: 100mA
– Power Supply: 12V DC – Negative Ground
– Protection: IP69 Water, Dust, Shatterproof
– Construction: Die Cast Housing
– Night Vision: 6 IR LED – Approx 5m Distance
– Resistor: Light Sensitive
– Mounting: Left/Right/Rear or other location
– Dimensions: 56.77W x 41.46H x 68.38D mm
INCLUDED
– Installation Manual
– Installation Hardware
