Description

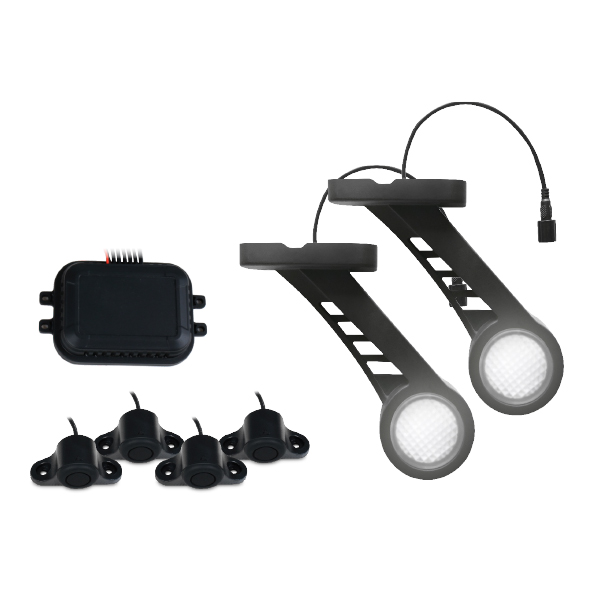

AXIS TRUCK/TRAILER DOCKING SYSTEM
-
- GENERAL
– Detection Range: 0.3 ~ 1.5
– Rated Voltage: 12/24V DC
– Operating Range: 9-32V DC
– Current Draw: <350mA
– Dust / Water Proof: IP67 Control Box
– Operating Temperature: -30 to +85°CLED INDICATORS
– Proximity Alert:
1.1 – 1.5M Slow Flash
0.6 – 1.0M Medium Flash
0.4 – 0.5M Fast Flash
0.0 – 0.3M Solid Light
– Arm Type: Flexible Polymer
– Arm Length: 192mmSENSORS
– Detecting Distance: 0.0 – 1.5M
– Detection Reaction Time: <100ms
– Sensor Type: Rubber
– Colour: Black
– Sensor Cable Length: 2 x 3M Lead, 2 x 6M Lead
– Sensor Installation: Flush, Under or Top Mount, Angle Shims
