Description

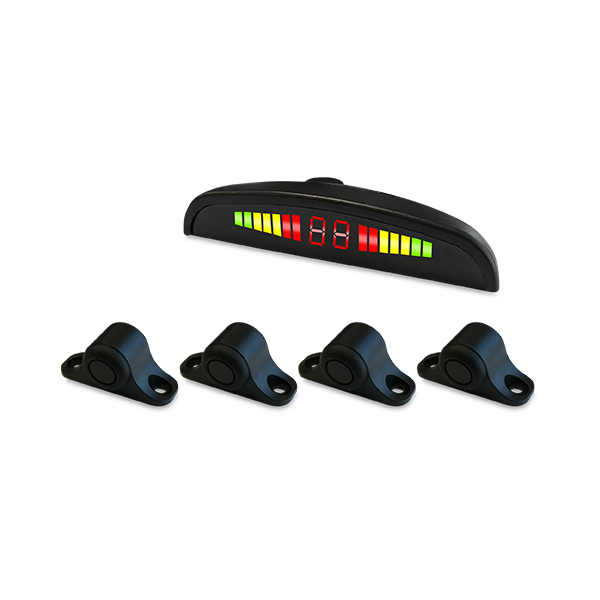

AXIS 12/24V WIRELESS 4 SENSOR
GENERAL
– Detection Range: 0.05 ~ 2.5m
– Rated Voltage: 12/24V DC
– Operating Range: 9-32V DC
– Operating Current: 150mA @ 12V
LED DISPLAY
– Proximity Alert: Visual Direction & Indicators
– Audiable Buzzer: Yes
– Mute Function: Yes
– Buzzer Cable Length: 1.5m
– Dimensions: 99W x 20H x 28Dmm
CONTROL BOX
– Water Resistance IP69K
– Wireless Range: Wireless Range: Up to 30m
– Ignore Function: Towbar / Spare Wheel
– Power Leads: 1.4m
SENSORS
– Sensor Type: Angled Rubber
– Sensor Size: 18.5mm
– Sensor Dimensions: 24.9W x 24.9H x 23.3Dmm
– Sensor Cable Length: 2.5m
– Sensor Installation: Under Mount or In-Bumper Mount
– Detecting Distance: 0.05 – 2.5m
– Ultrasonic Frequency: 40KHz
– Working Temperature: -20° to +80°C
– Water Resistance IP68
– Under Mount Dimensions: 65W x 30H x 21Dmm
