Uniden MGU-01 Z Type Antenna Mounting Bracket

Uniden MGU-01 Z Type Antenna Mounting Bracket $24.95

From $ a withInfo



Category: SKU: 9321886013320

Description

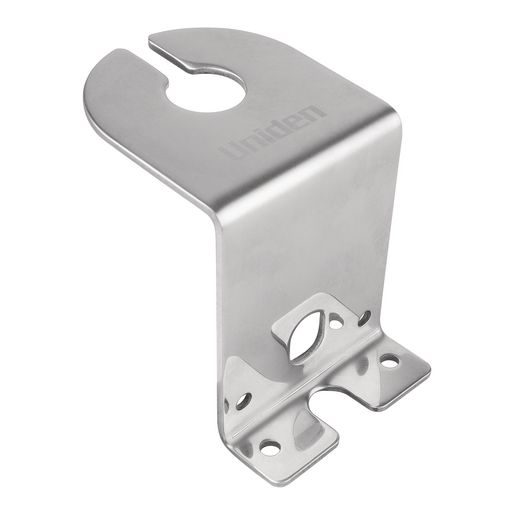

UNIDEN MUDGUARD BOOT ANTENNA Z BRACKET MODEL P/N MGU-01

With this bracket you can mount a variety of antennas up to 800mm long to a vehicle with a bonnet by either fixing under one of the existing bolts in channel of the mudguard or screwing into the same channel using the predrilled holes. The bracket is made from stainless steel and is 2.0 mm thick , therefore you would need an existing clearance of around 2.5-3 mm min between the bonnet and the mudguard .

MEASUREMENTS

  • Width:
  • Overall Height:
  • Length of bottom section:
  • Length of top section (where antenna mounts):
  • Thickness: 2.0mm
