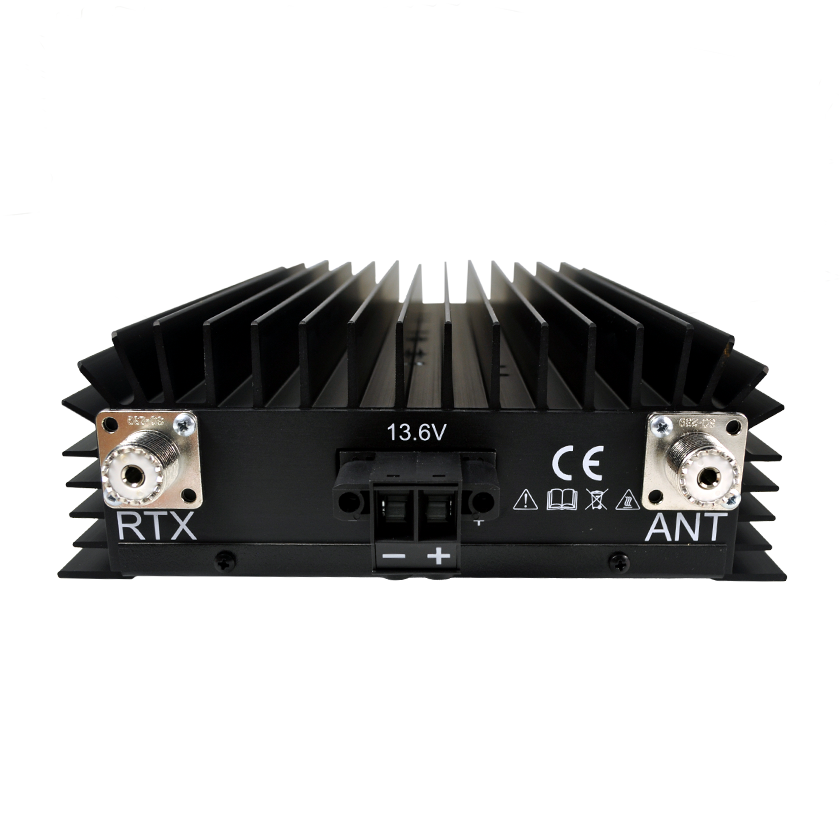

RM ITALY KL 405 V HF 12V LINEAR AMPLIFIER OUTPUT POWER 180 WATTS
The KL 405 is a 180Wmax 12V linear amplifier for use on the 10m Amateur Band, (or other HF bands with the use of a suitable Low Pass Filter). It requires a drive power of 1 to 10W in all modes. The KL 405 features a six position output power selector via a front panel control and a RX preamplifier with electronic switching, which can be activated via a switch on the front panel. The V version comes with a 80mm heatsink mounted fan.
-
Technical Specifications :
- Frequency: 10m Amateur Band, (1.8-30MHz with LPF)
- Power Supply: 13.8VDC+/- 1V 30A
- Input Current: 22 A max
- Input Power: 1-10W max (All modes)
- Output Power: 180W max
- Input VSWR: 1.1-1.5:1
- Fuse: 3x12A Fast 5x20mm
- Dimensions: L 215 W 190 H 83 mm
- Weight: 1.420 g
