Description

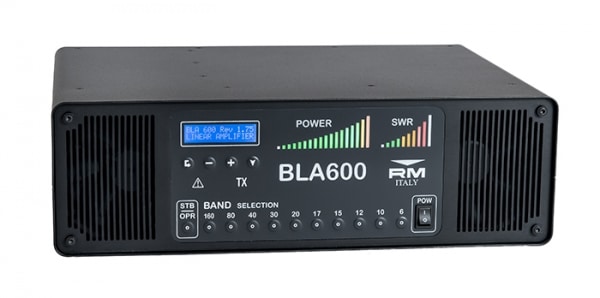

RM ITALY BLA 600 240Volt HF LINEAR AMPLIFIER OUTPUT POWER 500 WATTS
The BLA 600 is a 240Vac amplifier, The BLA600 is a 500W solid state linear amplifier compatible with all modern transceivers. It features automatic band selection. HF & 6m coverage, 3 antenna outputs that can be assigned by the user to one or more bands. This amplifier features an illuminated display that shows the operating status, and two cooling fans located in the front of the amplifier.
Technical Specifications :
- Frequency: : 1.8-30 MHz & 50-54 MHz
- Power Supply: : 240 Vac
- Input Power: 20-25W for 500W O/P 80-10m – 30-40W for 500W O/P 160m & 6m
- Output Power: 500W+ PEP P1dB
- Maximum RF output of 600W SSB pep, typically 500W SSB pep
- Input VSWR: 1.1-1.5:1
- Dimensions: L 430 W 324 H 142 mm
- Weight: 21.5 Kg
- Bandpass filter switching
- Dual MCU control with protection against excessive RF input drive level, high output VSWR, drive frequency, high temp. (power supply, heatsink, o/p FETs), drain over-voltage/over-current & HV PIN supply
- Fully automatic operation, with instant band changes
- MCU controlled large diameter DUAL cooling fans
- Utilises 50V Freescale MRF6VP5600H FET RF power transistors for
high RF power output, high reliability and highly linear RF output - Silent PIN diode RF switching – ideal for CW QSK operation
- Three (3) Teflon insulated SO-239 antenna output sockets
- Large heatsink fitted with large copper heatsink spreader sheet
- Requires PTT line and coaxial cable from transceiver to amplifier
- Size; 430w x 142h x 324d mm. Weighs 21.5kg.
- Inbuilt newly-upgraded AC power supply design
Attachments
BLA600 User Maual (5 MB)
