Description

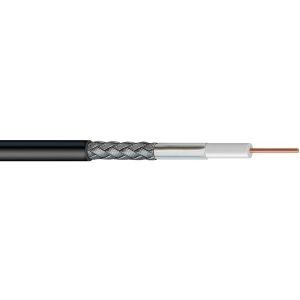

RFI RG58 9006 CELLFOIL 50 Ohm COAX CABLE; LOW LOSS LSZH 100 METER ROLL
Description
RFI RG58A/U 9006 Cellfoam 50 Ohm Coax Cable; Low Loss
RG58A/U, Solid Inner Conductor
Double screened with both Braid and Foil
100m roll
Black Low Smoke,
Zero Halogen jacket
Features
- Conductor = Annealed Bare Copper Wire (0.94 mm)
- Insulation = Foam PE (0.92 mm)
- Shield = (1) Tinned Copper Wire (0.12 mm) (Coverage = 82%)
- (2) Aluminium Foil (0.2 mm)
- Jacket = PVC (Black)
Specs
- Conductor Constitution | 19AWG ( 1 / 1.0mm)
- Conductor Material | Oxidised Free Copper Wire
- Insulation Material | Gas Injected Foam PE
- Insulation Thickness | 0.9mm
- Insulation Outer Diameter | 2.8 +/- 0.1mm
- Insulation Colour | Natural
- Shield Foil | Adhesive Aluminium Mylar Tape Wrapped Longitudinally on the Cable (Facing Outward)
- Shield Braid | 16 / 5 / 0.127mm, Tinned Copper Wires with 82% Coverage (min.)
- Jacket Material | PVC (RoHS)
- Jacket Thickness | 0.80mm
- Jacket Outer Diameter | 5.0 +/- 0.2mm
- Jacket Colour | Black
- Markings | CELLFOIL LOW LOSS RG58 TYPE RFI CAT. N0. 9006
Performance Properties
- Impedance | 50+/- 2Ω
- Capacitance | 82 pF/M (nom.)
- Velocity of Propagation | 78% (nom.)
Low loss RG-58AU type coaxial cable
LL195/ LMR195 – Cable Coax RG58 style Low Loss, Solid Copper Center with Foil and Braid.
Bend Radius 44.5mm
