Description

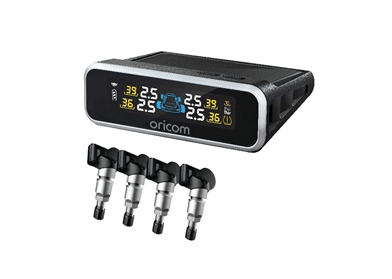

Solar Powered Display Internal Tyre Pressure Monitor System Kit
- Solar powered display unit
- Sensor is installed internally within the tyre itself
- Long lasting display unit battery life
- Internal sensor battery life approx. 5 years
- Wireless transmission between sensor and display unit
- Adjustable threshold value
- Auto brightness on display
- Real time monitoring with pressure and
- temperature at a glance
Internal Sensors
- Operating frequency: 433.92MHz ±0.05MHz
- Operating voltage: 2.0 ~ 3.6V
- Operating current: < / – 9mAâ€
- Static current: < / – 0.5uA
- Operating temperature: -30ºC ~ + 105ºC
- Storage temperature: -40ºC ~ + 125ºC
- Battery life: 5 Years
- Maximum torque: 4.0 ±0.5N*m
- Weight: 24.0g ±0.5g
Display
- Operating frequency: 433.92MHz ±0.05MHz
- Operating current: < / – 3.5mA
- Static current: < / – 100μA
- Operating voltage: 2.6 ~ 3.6V
- Operating temperature: -20ºC ~ +70ºC
- Storage temperature: -40ºC ~ +80ºC
- Built-in battery capacity: 500mAh
- Charging temperature: -10ºC ~ 65ºC
- Solar charging current: < / – 15mA (at 5500LX 25ºC)
- USB charging current: < / – 70mA
Additional Features
- Compact design
- Visual and audio alarm
- Optional Micro USB input
- Intelligent sleeping mode for power saving
- Easy to install
- High/low pressure warning
- Sensor failure warning
