Description

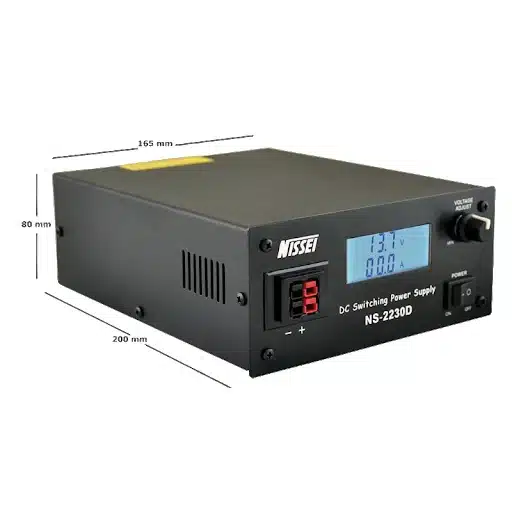

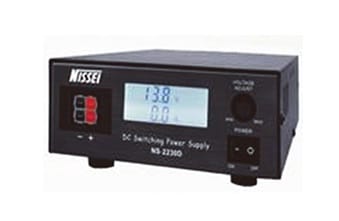

NISSEI NS-2230D SWITCHING 28A CONTINUOUS, 30A MAX POWER SUPPLY
- Input voltage: 220VAC ±10% 50Hz or 110VAC ±10﹪60Hz
- Output voltage: 13.8V or 9-15V variable
- Output voltage regulation: < 2﹪
- Protection: Overload, Over voltage, Short-circuit
- Output current: 28A continue，30A Max.
- Ripple/Noise: < 80mVp-p
- Fuse: 4A / 250V
- Display indicator: LCD display
- Dimensions (W/H/L): 165 x 80 x 200 mm
- Weight: 1.54 Kg
- 1. Power switch “ON/OFF”
- 2. Meter switch
- 3. Voltage adjustment
- 4. Output terminal (1)：Anderson power poles
- 5. Power indicator
- 6. Output terminal (2)：Five-Way binding post
- 7. Cooling fan
- 8. AC input power & Fuse
Order yours at Elite Communications & Electronics today.
