Description

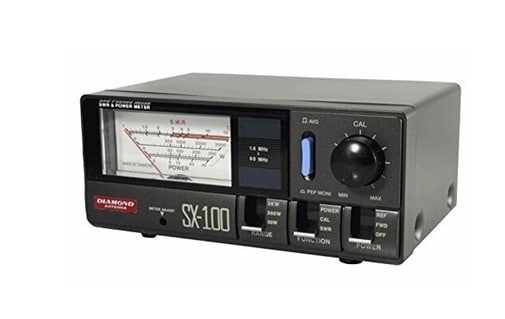

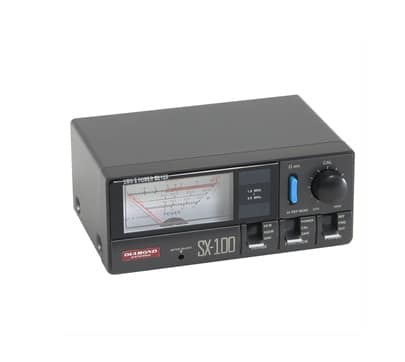

DIAMOND SX-100 SWR METER
- Brand:
- Diamond Antenna
- Manufacturer’s Part Number:
- SX100
- Part Type:
- SWR/Wattmeters
- Product Line:
- Diamond Antenna SX100 Power Meters
- Meter Frequency Range:
- 1.6-60 MHz
- Minimum Power Range:
- 30 W
- Middle Power Range:
- 300 W
- Maximum Power Range:
- 3,000 W
- Meter Style:
- Sweep needle
- Meter Illumination:
- Yes
- Peak Power Readout:
- Yes
- Peak Hold:
- Yes
- Built-In Frequency Counter:
- No
- Meter RF Connector Type:
- UHF female, SO-239
- DC Power Required:
- Yes
- External Power Input Voltage:
- 12 Vdc
- Remote Sensor Included:
- No
- SWR/Wattmeter Width:
- 6.000 in.
- SWR/Wattmeter Height:
- 2.000 in.
- SWR/Wattmeter Depth:
- 4.000 in.
- SWR/Wattmeter Weight:
- 2.00 lbs.
- Quantity:
- Sold individually.
Diamond Antenna SX100 Power Meters
Diamond Antenna SX100 power meters measure forward and reflected power and VSWR. The compact size of the Diamond SX100 meters is useful for testing both base and mobile installations. The meter is illuminated and features an SO-239 connector.
Features include:
* Switchable RMS or peak power
* Frequency 1.6-60 MHz
* Power ranges 30/300/3KW (1,200 continuous AM/CW)
* Minimum power SWR test is 20 watts
Order yours today from Elite Communications And Electronics
