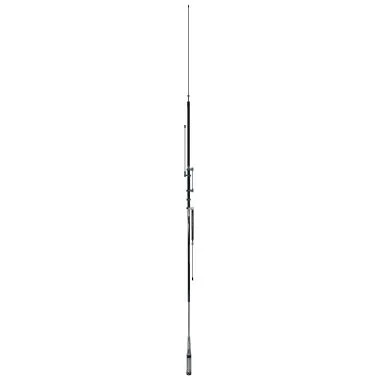

DIAMOND HV7CX MULTIPLE BAND MOBILE ANTENNA 7, (10/14). 21 (18/24), 28/50/144/430MHz (40m/(30m/20m), 15m/ (17m/12m), 10m/6m/2m/70cm), 10/14MHz (30m/20m) AND 18/24MHz (17m/12m) WITH OPTIONAL LOADING COILS

The HF7CX is a 6 band capable mobile antenna covering 40m/15m/10m/6m/2m/70cm. With the addition of an optional loading coil 30m/20m can also be added.

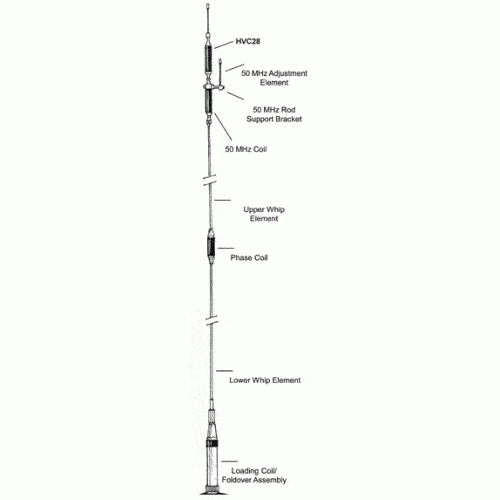

Unlike some similar antennas, the HV7CX does not require you to change coils or plug positions in order to change bands. Once assembled it works on all bands. The antenna can be laid flat using a special spring hinge,ideal for entering the garage/car parks. Digital ready.

Specification

• Frequency: 7.0 to 7.1MHz/21.00 to 21.45MHz/28.00 to 29.7MHz/50 to 52MHz/144 to 146MHz/430 to 440MHz
• Length: 1.9m
• Weight: 660g(with 7MHz loading coil)
• Gain: 2.15dBi(144MHz), 5.5dBi(430MHz)
• VSWR: Less than 1.5:1(21/28/50/144/430MHz), Less than 2.0:1(7/14MHz)
• Max power rating: 120W SSB(7/14/21/28MHz),200W SSB(50/144/430MHz)
• Impedance: 50ohms
• Connector: PL-259
• Type: 1/4 wave (7/14/21/28/50MHz), 1/2 wave (144MHz), 2 x 5/8 wave (430MHz)
