Description

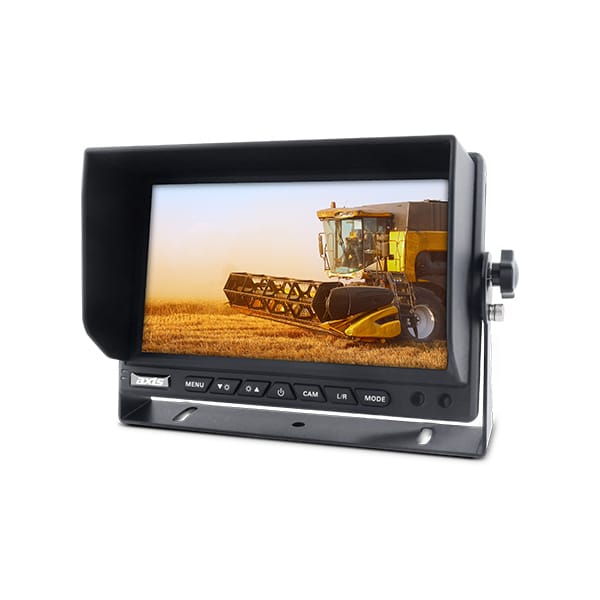

A High Resolution 12/24V monitor that offers a clear image and enhanced view when reversing. Its Heavy Duty construction makes it suitable for trucks, machinery and vehicles. The HD7030 also has the added flexibility of using up to 3 cameras.
Specs:
MONITOR TFT Panel: New Grade A LCD
LCD Size: 178mm (7-Inch) Diagonal
Display Format: 16:9
Resolution: 1024 x 600
Brightness: less than 500 CD/M2
Viewing Angles: 70 degree Left/Right/Up/Down
Video System: Auto PAL/NTSC Select
Video Connect: 3 x 4-Pin (Male)
Compatability: Works with all AXIS FHD HD Cameras
Camera Triggers: 3
Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
Buttons: Illuminated
Guidelines: Selectable On/Off (Camera 2 Only)
Audio: On Board Speaker (Camera 3 Only)
Menu: OSD
Main Menu: Brightness/Contrast/Colour/Photosensitive (Dimmer), Language, Default Setting, Volume, RLUD, (Screen Orientation), VCOM (Exposure), Ruler Setting (Guidelines), AccTime, Version
Operating Temp: -20 degC to +70 degC
Power Input: 10-32V DC (Negative Ground)
Dimensions: 180W x 121H x 26D mm (excluding bracket)
Finish: Matt Black Rubber, Matt Metal
