Sale!

Yaesu FT-891 HF/50MHz All Mode Mobile Transceiver

Yaesu FT-891 HF/50MHz All Mode Mobile Transceiver Original price was: $1,249.00.Current price is: $1,199.00.

From $90.77 a fortnight with



Stock Levels  Can Vary From Shop And Warehouse

Shipping And Insurance to be quoted for this item

Category: SKU: 121515158254548656441523-1-1-1-1-1-1-1

Description

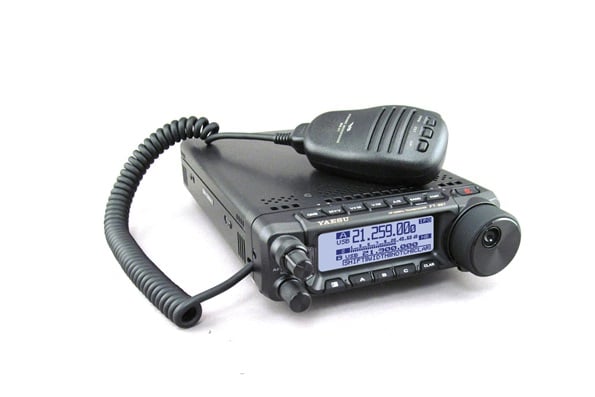

Yaesu FT-891 HF/50MHz All Mode Mobile Transceiver

  • Yaesu FT-891 HF/50MHz All Mode Mobile Transceivers

    Yaesu FT-891 HF/50MHz All Mode Mobile Transceivers continue Yaesu’s legacy for legendary receiver design in a compact package, providing uncompromising performance for both mobile and stationary Amateur Radio use. High end 32-Bit floating-point DSP enhances the operating experience, providing a cleaner, clearer signal and reducing overall operator fatigue—thereby creating a more enjoyable environment for any ham.

    Uncompromising Receiver Circuit Design Ensures Excellent Performance:
    * Triple conversion with a 1st IF frequency of 69.450 MHz (SSB/CW/AM
    * 3 kHz roofing filter equipped as standard feature
    * TCXO provides plus/minus 0.5ppm high-frequency stability (-10 C to 50 C)
    * 3-Year manufacturer warranty

    100 Watt Output:
    FT-891 transceivers provide a stable 100 watts (25W AM) of high-power output. High reliability is assured by Yaesu’s careful circuit design with efficient thermostatically controlled dual internal fans and a diecast heat-transferring chassis.

    IF DSP:
    Yaesu’s IF DSP provides effective and optimized QRM rejection. 32-bit high-speed floating-point DSP (maximum 3000 MIPS) provides cancellation/reduction (DNR) of the random noise that is so frequently frustrating while on the HF bands. Highly optimized AUTO NOTCH (DNF) automatically eliminates dominant beat tones, and the CONTOUR and the APF are very effective receiver noise reduction tools during HF-band operations.

    USB Connection:
    A native USB connection supports PC connectivity with a single cable, allowing for full rig control via a virtual serial port connection (VCP).

    Special features for ease of operation:
    * Large diameter Main Tuning Dial (1.6 in. / 41mm) with torque adjustment
    * Pop-up menu for quick and easy navigation
    * Multi-function knob
    * Large transmit/receive indicator
    * Three programmable front panel function keys

    Support for ATAS (Active Tuning Antenna System):
    FT-891 transceivers fully support the ATAS-25 and ATAS-120A Active Tuning Antenna System (optional), allowing for plug-and-play field and mobile operation.

    Ultra-compact:
    Measuring 6.1 in. x 2.0 in. x 8.6 in. (155 x 52 x 218 mm), FT-891 transceivers are innovative Multi-band, Multi-mode Mobile/Portable transceivers with a rugged case design.

    Optional FC-50 Antenna Tuner Unit:
    Yaesu’s FC-50 is a microprocessor-controlled antenna tuner that is designed specifically for the FT-891. An FC-50 may be easily coupled with FT-891s and includes all necessary interconnect cables for operation right out of the box.

    Specifications:

    Frequency Range: TX: 1.8-54 MHz (Amateur Bands only) RX: 30 KHz – 56 MHz
    Channel Step: 2/5/10 Hz (SSB, CW), 10/100 Hz (AM, FM)
    Frequency Stability: plus/minus 0.5 ppm 14 degrees F to 122 F (-10 C to 50 C)
    Modes of Emission: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM)
    Impedance: 50 Ohms, unbalanced
    Supply Voltage: 13.8V DC plus/minus 15 percent, negative ground
    Current Consumption: RX: 2.0A (Signal Present) TX: 23A
    Operating Temperature Range: 14 to 122 degrees F (-10 C to 50 C)
    Case Size (WxHxD): 6.1 in. x 2.0 in. x 8.6 in. (155 x 52 x 218 mm) w/o knobs
    Weight (Approx.): 4.18 lbs. (1.9 kg)
    Output Power: 100W SSB/CW/FM (AM: 25W)
    Circuit Type: SSB/CW/AM: Triple-conversion Super-heterodyne FM: Double Conversion Super-heterodyne
    Intermediate Frequencies: 1st: 69.450 MHz / 2nd: 450 KHz
    Maximum AF Output: 2.5 W 4 ohms with 10 percent THD
    Audio output Impedance: 4 to 16 Ohms (8 Ohms nominal)

    Receiver sensitivity:
    * SSB/CW (S/N 10dB) 0.158uV (1.8-30 MHz), 0.125uV (50-54 MHz)
    * AM (S/N 10 dB) 4uV (0.5-1.8 MHz), 1.6uV (1.8-30 MHz), 1.2uV (50-54 MHz)
    * FM (12 dB SINAD) 0.35uV (29, 50-54 MHz)

Ultra Compact Design

Measuring 6.1″ x 2.0″ x 8.6″ (155 x 52 x 218 mm), The FT-891 is an innovative Multi-band, Multi-mode Mobile/Portable transceiver with Ultra Compact and rugged case design.

100 Watts Reliable High Power Output

The FT-891 provides stable 100W (25W AM) high power output. High reliability is assured by the transmitter careful circuit design with efficient thermostatically-controlled Dual internal fans and the diecast chassis.

Yaesu Uncompromising Receiver Circuit Design Ensures Excellent Performance

  • Triple conversion with a 1st IF frequency of 69.450 MHz (SSB/CW/AM)
  • 3 kHz roofing filter equipped as standard
  • TCXO provides ±0.5 ppm High frequency stability ( 10°C to +50°C)

IF DSP provides effective and optimized QRM rejection

The 32 bit high speed floating Point DSP (max 3000 MIPS) provides effective cancellation/ reduction (DNR) of the random noise that is frequently frustrating in the HF  frequencies. Also: the AUTO NOTCH (DNF) automatically eliminates the dominant beat tone. The CONTOUR, and the APF, are very effective receiver noise reduction tools in the HF bands operations. The YAESU original DSP QRM and noise reduction functions are provide

Automatic-Matching 100 Memory Antenna Tuner (Option)

The FC-50 is a microprocessor-controlled antenna tuner that is designed specifically for the FT-891. The FC-50 can be easily coupled with the FT-891.

Other Features.

  • Large dot matrix LCD display with Quick Spectrum Scope
  • Three Programmable Front Panel Function Keys are selectable to the user’s personal preferences

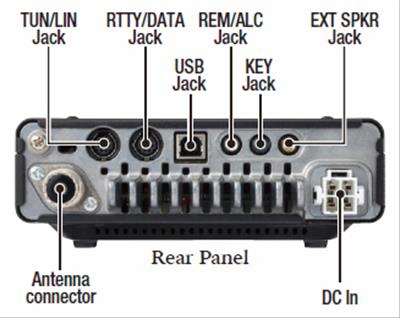

  • USB port allows connection to a PC with a single cable (CAT control, PTT/RTTY control)
  • TUN/LIN connector allows connection of optional  FC-50 or VL-1000
  • Advanced electronic keying (4 to 60 WPM) with FULL BK-IN support
  • Support Active-Tuning Antenna system
    (ATAS-120A, ATAS-25 Option)

Supplied Accessories

Hand Microphone(MH-31A8J)
Mobile Mounting Bracket(MMB-82)
DC Power Cord w/Fuse
Spare Fuse (25A)
Operating Manual
Safety Guide
Warranty Card
