ZCG G46VHP Omnidirectional UHF collinear, white, 380-520 MHz, specify 1.5%, 1kW, 7/16″ DINF, 6 dBd – 3.0m

ZCG G46VHP Omnidirectional UHF collinear, white, 380-520 MHz, specify 1.5%, 1kW, 7/16" DINF, 6 dBd - 3.0m $1,692.00

From $124.70 a fortnight withInfo





ZCG Antenna’s Are Proudly Australian Made And Owned When Quality Counts

Category: SKU: 9321886013214-4

Description

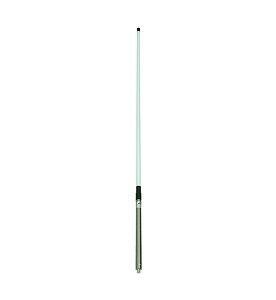

The G46VHP omni-directional UHF collinear antenna is ideal for use in UHF or TETRA communications applications within the UHF frequency range 380-520 MHz. The G46VHP high powered collinear antenna is suitable for all installation locations and is ideal as a centrally mounted RF solution utilising the omnidirectional signal propogation for a licenced government radio network or Land mobile network channel. The G46VHP requires a specifed 1.5% bandwidth when ordering or alternatively Tx/Rx frequencies, please note tuning will favour the Tx frequency.

FREQUENCY

380-520 MHz – UHF, TETRA, LMR and GRN compatible

BANDWIDTH

Specify any 1.5% within frequency range

GAIN

6 dBd

TUNING

Factory at better than 1.5:1 VSWR

IMPEDANCE

50 Ohms – nominal

H PLANE BEAMWIDTH

360° omnidirectional

MAXIMUM POWER

1 Kilowatt / 1000 Watts

POLARISATION

Vertical

DC GROUNDED

Yes

CONSTRUCTION

White parallel fibreglass radome, 304 stainless steel mount section and external tri-metal plated 7/16″ DIN female connector

CONNECTOR

7/16″ DIN female in base of mount section

DIMENSIONS

Height: 3.0m – at 380MHz, Mount section: 450mm x 50.8mm O.D.

WEIGHT – KG

4

WIND LOAD AT 160KPH

8kg, 0.079kN

download brochure



NOTE: Shipping of items over 1.05m in length & heavy items over 5kg:

Items longer than the Australia Post limit of 1.05m are shipped via courier and will be quoted, this includes most larger antennas. Some items are dispatched from our suppliers direct to our customers to reduce freight and delivery times. EXAMPLE: Antennas exceeding 1.7m in length ‘may’ cost approximately $140 in freight alone. Please keep this in mind when placing your order as freight charges may cost more than your purchase item itself. Unfortunately, we simply cannot absorb these exuberant freight charges to operate a business. Thank you for your understanding.
