Mobile One Raised Feed UHF 477MHz Antenna Base – CP470S

Mobile One Raised Feed UHF 477MHz Antenna Base - CP470S $139.00

From $ a withInfo


Code: CP470S

Length: 300mm

Weight: 430 Grams

Mount: PL259

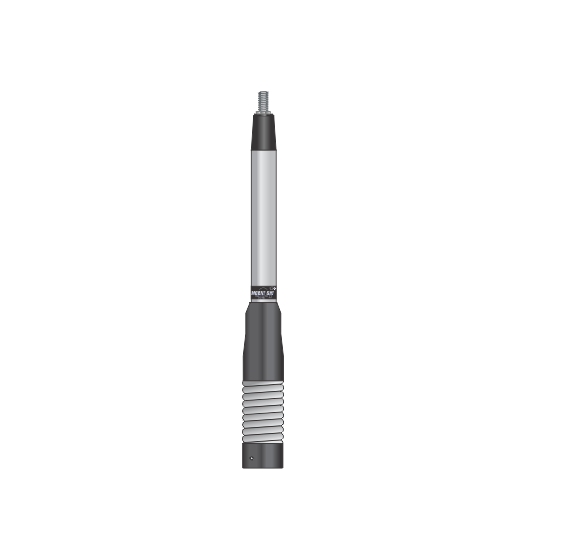

The CP470S is a UHF dipole antenna with stainless steel spring and a heavy duty fiberglass antenna top commonly known as a “Raised Feed”.

The CP470S is almost indestructible as it has no soldered internals that can break but rather is modular made up of parts that fit together and all are replaceable.

The CP470S has a solid Stainless Steel 1/4 wave tube that is its own tuned ground plane so it is not needed to be earthed in any way and also allows the
antenna to be placed in almost any location.

The CP470S has a pl259 connection removable heavy duty spring base to absorb the vibration from moving vehicles and is ideal for bull bar mounting.

One of the key features of the CP470S is the ability of using a large range of different antenna tops allowing for different colours, lengths and gains.

Raised feed Antennas have their own ground plane, this means they can be mounted on any surface, anywhere.

UHF Raised feed antennas are dipole antennas that combine a standard UHF antenna with a 1/4 wave tube, this combination amplifies the gain of the individual Antenna Top by further lowering its radiation pattern. Raised feed antennas have the highest gain for the shortest length of any antenna

Base Section only Top Price $139.00
