ICOM IC-905 VHF/UHF/SHF All Mode Base/Portable Transceiver Reservation
Industry First Multi-Bane 144 MHz to Microwave Transceiver
- Explore the World of Microwave
- Separate Controller and RF Unit Configuration
- Less Signal Loss
- Power Supplied through the Controller Cable
- GPS-Controlled Oscillator for Ultimate Frequency Stability
- Wideband 50 MHz Span, Real-time Spectrum Scope
- ATV (Amateur TV) Mode
- Icom Common User Interface
- Full D-STAR Functions
- Optional 10 GHz TransverterCX-10G
Industry First Multi-Band 144 MHz to Microwave Transceiver!
Explore the World of Microwave
The IC-905 is the industry’s first microwave rig in the 144, 430/440, 1200, 2400, 5600 MHz and 10 GHz* bands. Multi-mode operation including SSB, AM, FM, D-STAR DV/DD and FM-TV (Amateur TV). Output power is 10 W on 144, 430/440, 1200 MHz, 2 W on 2400, 5600 MHz and 0.5 W on 10 GHz.
* CX-10G is required for 10 GHz operation
Separate Controller and RF Unit Configuration

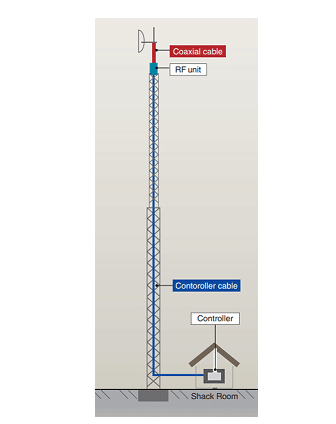

The IC-905 is the industry’s first super efficient microwave base station with the RF unit designed to be at the base of the antenna, rather than in the shack. This design eliminates signal loss due to costly, long coax feed line runs found in legacy SHF designs. Optional 50 m (164 ft) or 20 m (65.6 ft) controller cable is available with the IC-905.
Less Signal Loss
With the RF unit mounted at the antenna, transmit and receive signals are at their maximum efficiency as the coax feed line is measured in inches rather than feet, keep signal loss to a minimum. This is possible due to the controller cable providing digital communications between the controller and RF units.
Power Supplied through the Controller Cable
The DC power is supplied from the controller to the RF unit through the controller cable, making it possible to supply power with a low loss. Moreover, optional CX-10G’s power is supplied from the IC-905 RF unit.
GPS-Controlled Oscillator for Ultimate Frequency Stability
Frequency accuracy and stability are required for SHF band operation. Even with a high-performance OCXO, the frequency gradually changes due to temperature and aging. To solve this problem, the IC-905 uses a high-precision 1 pulse-per-second (1 PPS) clock signal from an internal GPS (GNSS) receiver to enable advanced frequency control.
Wideband 50 MHz Span Real-time Spectrum Scope
A high-performance real-time spectrum scope and waterfall display are built in. The real-time spectrum scope can be adjusted for Center, Fixed, and Scroll mode, and it covers a wide bandwidth of up to 50 MHz span.
ATV (Amateur TV) Mode
The IC-905 is compatible with the ATV (FM-TV, NTSC, PAL or SECAM) mode. With an analog camera connected, the IC-905 can transmit video, and receive a real-time video. Furthermore, received videos can be monitored on an external display connected through AV-output connector.
Icom Common User Interface
The controller of the IC-905 was designed based on the compact IC-705 and utilizes Icom’s Common User Interface system used in Icom’s touch screen transceivers.
Full D-STAR Functions
DV, DD mode, DR function, Terminal mode, and Access Point mode enable easy use of D-STAR. It is also possible to send, receive, and view received pictures with the IC-905.
Optional 10 GHz Transverter, CX-10G
IC-905
Aim Higher!
VHF, UHF, and Explore the World of Microwave
industry First Multi-Band 144 MHz to Microwave Transceiver!
Explore the World of Microwave
The IC-905 is the industry’s first microwave rig in the 144, 430/440, 1200, 2400, 5600 MHz and 10 GHz* bands. Multi-mode operation including SSB, AM, FM, D-STAR DV/DD and FM-TV (Amateur TV). Output power is 10 W on 144, 430/440, 1200 MHz, 2 W on 2400, 5600 MHz and 0.5 W on 10 GHz.
* CX-10G is required for 10 GHz operation
Separate Controller and RF Unit Configuration
Less Signal Loss
With the RF unit mounted at the antenna, transmit and receive signals are at their maximum efficiency as the coax feed line is measured in inches rather than feet, keep signal loss to a minimum. This is possible due to the controller cable providing digital communications between the controller and RF units.
Power Supplied through the Controller Cable
The DC power is supplied from the controller to the RF unit through the controller cable, making it possible to supply power with a low loss. Moreover, optional CX-10G’s power is supplied from the IC-905 RF unit.
GPS-Controlled Oscillator for Ultimate Frequency Stability
Frequency accuracy and stability are required for SHF band operation. Even with a high-performance OCXO, the frequency gradually changes due to temperature and aging. To solve this problem, the IC-905 uses a high-precision 1 pulse-per-second (1 PPS) clock signal from an internal GPS (GNSS) receiver to enable advanced frequency control.
Wideband 50 MHz Span
Real-time Spectrum Scope
A high-performance real-time spectrum scope and waterfall display are built in. The real-time spectrum scope can be adjusted for Center, Fixed, and Scroll mode, and it covers a wide bandwidth of up to 50 MHz span.
ATV (Amateur TV) Mode
The IC-905 is compatible with the ATV (FM-TV, NTSC, PAL or SECAM) mode. With an analog camera connected, the IC-905 can transmit video, and receive a real-time video. Furthermore, received videos can be monitored on an external display connected through AV-output connector.
Icom Common User Interface
The controller of the IC-905 was designed based on the compact IC-705 and utilizes Icom’s Common User Interface system used in Icom’s touch screen transceivers.
Full D-STAR Functions
DV, DD mode, DR function, Terminal mode, and Access Point mode enable easy use of D-STAR. It is also possible to send, receive, and view received pictures with the IC-905.
Optional 10 GHz Transverter, CX-10G
CX-10G
The CX-10G transverter provides 10 GHz operation by converting to a 2400 MHz IF signal. 10 GHz operation becomes more approachable and easier to work. The CX-10G is in bypass mode when the use of the 2400 MHz band.
A Variety of Optional Antennas
Optional Collinear antennas for each bands, 2400, 5600 MHz and 10 GHz are available. Additionally, high-performance parabolic antenna for 10 GHz is also available.
Collinear antenna AH-24 for 2400 MHz, AH-56 for 5600 MHz and AH-100 for 10 GHz
Parabolic antenna AH-109PB for 10 GHz
The CX-10G can be installed in the back of the antenna
Other Features
- SD card slot
- USB Type-C connection for PC and mobile connectors
- Power Amp thermal protection function
- ⊿TX, RIT and AFC (Automatic Frequency Control) functions
- One-Touch FT8 Mode Preset
- Quick Data mode setting for SSTV, RTTY, PSK31, JT65B and FT8
- AMPS hole pattern and 1/4-20 tripod mount for controller unit
- Two call channels for each band (2×6 bands)
- 500 memory channels divided into up to 100 groups
- 50 scan edges, 2500 repeater memories and 300 GPS memories
VHF-UHF-SHF all-mode transceiver with remote multiband RF module
for virtually no coaxial cable loss!
RF output; 10W on 144MHz, 10W on 430MHz, 10W on 1200GHz,
2W on 2.4GHz, 2W on 5.6GHz (Opt. 10GHz module; 0.5W o/p).
Includes high-performance GPS antenna!
THREE YEAR IC-905 WARRANTY
PROVIDED BY ICOM AUSTRALIA
Outstanding IC-905 features and specifications…
- Industry-first; 2m band to microwave transceiver!
- Bands covered; 144MHz~148MHz (2m), 430MHz~450MHz (70cm), 1240MHz~1300MHz (23cm), 2300MHz~2309.000MHz (12cm) and 2390MHz~2400MHz (12cm), 5650MHz~ 5925MHz (5cm), Optional 10GHz~10.5GHz (3cm). USA freq. ranges as confirmed by Icom AU.
- Modes of operation; SSB, AM, FM, CW, DStar DV/DD & Amateur TV
- RF direct sampling on 144MHz & 430MHz bands. Down conversion IF sampling on 1240MHz, 2400MHz & 5650MHz bands. Optional CX-10G transverts to 2400MHz band which has down conversion IF sampling
- Amazing receiving sensitivities (SSB/CW, filter off, @ 10dB S/N); 0.11uV on 144MHz/430MHz/1240MHz/2400MHz, 0.15uV on 5600MHz and 0.14uV on 10GHz (with optional CX-10G). Yes, truly amazing!
- IC-905 uses a 1-pulse per second (1pps) clock signal from an internal GPS receiver to enable ultimate frequency control (essential for SHF)
- Full D-STAR functions; DV, DD mode, DR function and access point mode! Yes, it’s possible to send, receive and view received pictures
- Compatible with analogue ATV modes; FM-ATV, NTSC, PAL, Secam
- Colour TFT LCD 4.3″ touch screen has a wide real-time spectrum display of 50MHz bandwidth and Waterfall display, too!
- IC-905 has 500 memory channels, divided into up to 100 groups
- Control cable makes the connection between the controller and the
remote waterproof RF module using PoE (Power over Ethernet). This cabling virtually eliminates coaxial cable losses and eases installation - Ports allow connection of microphone, external speaker/speaker-mic, AV input/output, CW key, SD card slot, USB-C, 2 LAN ports (one for the RF module, one for wired Ethernet and one DC power connector
- Utilises Common User Interface controller based on IC-7300 interface
- Multi-function metering and many other features…
- AFC controls and TX frequency fine adjust
- Power amplifier thermal protection
- 50 scan edges, 2500 repeater memories and 300 GPS memories
- USB Type-C™ for PC and mobile connectors
- 2 call channels per band (2 x 6 band)
- One-touch FT8 mode access
- Dimensions; Controller 200mm x 83.5mm x 82mm, RF unit 172mm
x 87mm x 210mm, CX-10G 181mm x 115mm x 64mm - Weights; Controller 940g, RF unit 3.2kg, CX-10G 1.34kg
With the IC-905 Aim Higher!
VHF, UHF, and Explore the World of Microwave
