Description
High-Performance Black Box VHF Radios When Helm Space is at a Premium
Installation Example
Tower Fishing Boat
Easily extends CommandMic™ on a tower and can be used as an intercom as well as a VHF radio operation.

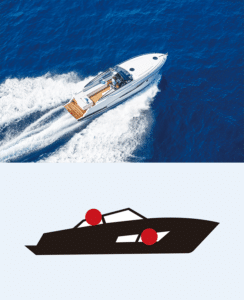

Open Top Boat
The waterproof CommandMic™ can be used in open top areas even in rain or splash conditions.
Small Center Console Boat
Stows the RF unit out of sight space and pulls the CommandMic™ out of the console panel.

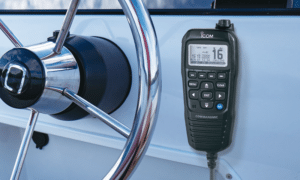

Clean Installation for Limited Helm Space
Installation example

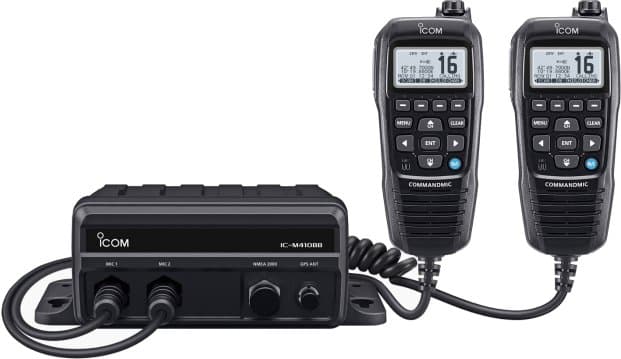

The IC-M410BB consists of a multi-piece, CommandMic™ and black box configuration. All operations including DSC, can be made from the CommandMic™, HM-195, and the RF unit can be installed in an out-of-sight place, up to 60 ft (18.3 m)* away from the CommandMic™.
* Two OPC-1541 optional cables are required for 60 ft installation.
Install Up to Two Stations on Board, VHF Radio Available at Your Favorite Positions
Up to two CommandMic™ stations are available with the IC-M410BB providing access to the VHF radio and Intercom functions.

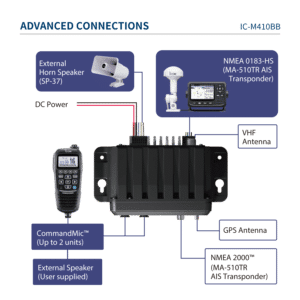

NMEA 2000™ and NMEA 0183-HS Provides Data Integration on Your Boat

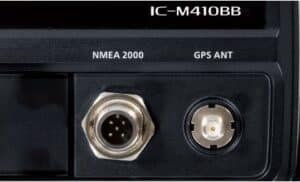

NMEA 2000 connector
NMEA 2000™ network provides plug-and-play data communication to inter-connect with other marine equipment such as an MFD (Multi-Function Display). The radio can send GNSS (GPS) position, DSC call, and radio channel to other equipment.
Active Noise Canceling – No Need to Shout into Your Microphone
The Active Noise Cancelling digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment.

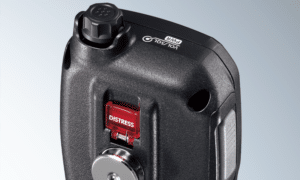

Built-in Class D DSC, “Distress” Button Can be a Lifesaver in an Emergency Situation
With just a press of the “DISTRESS” button, the built-in DSC (Digital Selective Calling) system can digitally transmit distress information to the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.
Loud 1-Way RX Hailer for Radio Watch on the Deck or Tower

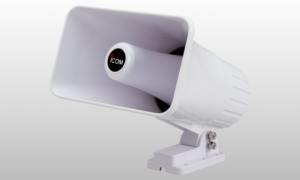

Optional SP-37
A built-in 15 W* amplifier increases the audio output to an external hailer speaker. The 1-way RX hailer function enables you to keep watch of the radio traffic on the deck or tower through the hailer speaker. You can also sound foghorn patterns from the hailer speaker.
* 13 W for the Europe Version.
Other Features
- IPX7 waterproof, 1 m depth water for 30 minutes
- Integrated GPS receiver*
- AquaQuake™ function
- External speaker connection from the CommandMic™ cable
- Anchor Watch function
(* External GPS antenna is included with the EUR version. Optional with the USA version. ）
* GPS antenna is optional with the IC-M510BB and IC-M410BB USA versions.
Supplied Accessories
- Commandmic, HM-195GB
- Connection cable OPC-1540 (6.1 m, 20 ft)
- GPS antenna* (* GPS antenna is not supplied with the USA version.)
- Microphone hanger
- DC power cable
- Mounting base
- Connector cap
